PACE 6000 - Druck Pressure Controller



Druck, a Baker Hughes business, offers highly-rated PACE differential pressure controllers and pressure sensors and indicators that measure, test, and calibrate pressure across pressure ranges, from low pressure to high pressure and absolute pressure. The PACE 1000 series runs in applications from airfields to automotive, to atmospheric pressure sensing and monitoring, while the PACE 5000/6000 modular sensor delivers speed, precision, and control in pressure measurement.

PACE 1000. This high-precision and high-performance pressure sensor indicator is available in either bench-top or panel-mounted layout for testing, monitoring, and calibration. This adjustable automation features up to three unique pressure ranges per instrument.

PACE 1001B. This high-precision barometric indicator and recorder pressure sensor is designed for pressure measurement, sensing, and monitoring in laboratories, on airfields, and for applications in which atmospheric pressure must be measured with exceptional accuracy.

PACE 5000/6000. This modular pressure control sensor delivers high speed, high precision, and cost-effective control, with output options that support industrial high pressure, low pressure, control valve, pneumatic pressure controller automation and production, testing, and calibration applications, for either the single-channel PACE 5000 or the dual-channel PACE 6000.



PACE CM3 — Control module, powered by TERPS® Technology

Our differential pressure controller system combines the fastest differential pressure controllers with the most accurate control module — CM3. Due to the implementation of Druck-established TERPS® (Trench Etched Resonant Pressure Sensor) technology at its core, our PACE CM3 delivers unprecedented metrological characteristics and resultant levels of performance for our differential pressure controllers in pressure measurement applications.

Visit product page



[ON-DEMAND WEBINAR] Where speed & accuracy combine | Meet Druck's automated calibration system

Learn about our highest accuracy electronic pressure controller module, PACE CM3, from the people who know it best, in our on-demand webinar.

This online event shows real examples of how 4Sight2 calibration software, when integrated with our PACE pressure controllers or temperature calibrators, can automate and improve your calibration process.

Watch the webinar here



PACE Range
[NEW] PACE CM3 — control module, powered by TERPS® technology

Our pressure control system combines the fastest pressure controllers with the most accurate control module - CM3. Due to the implementation of Druck established TERPS® (Trench Etched Resonant Pressure Sensor) technology at its core, our PACE CM3 delivers unprecedented metrological characteristics and resultant levels of performance for our controllers.

  • Unique TERPS Technology which delivers an unprecedented level of performance
  • Accuracy of +/-11ppm rdg + 26ppm FS
  • Automated calibration and data integration with 4Sight2 Software
  • Long Term Stability

Discover more about how PACE CM3 can optimize your operations by downloading our whitepaper.

PACE CM3
PACE 1000 pressure indicator

A high precision Druck pressure Indicator, designed for test bench, bench top and rack mount calibration, and automated test applications.

Features:

- Single or multiple pressure range configurations

- Up to three pressures displayed simultaneously

- Choice of precision up to 0.001% FS

- Full scale pressure ranges up to 1000 bar (14500 psi/100 MPa)

- Data Logging as standard with on screen replay





PACE1000 has the following options:

- Leak test

- Analogue Output

- Switch Test

- Aeronautical pressure units

Please read more information regarding this product below on the datasheet.

PACE1000

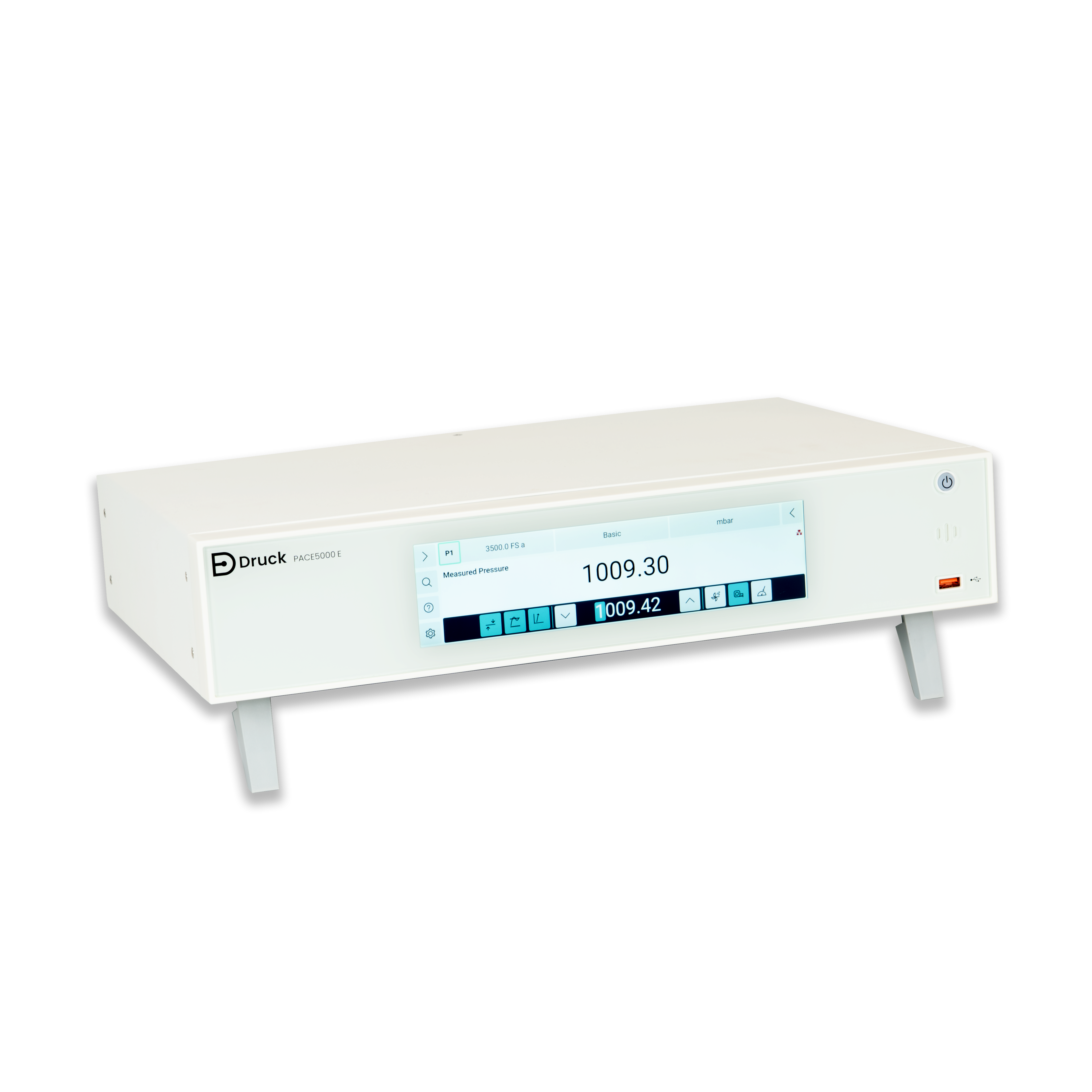

PACE 5000 modular pressure controller

A high precision Druck pressure controller, designed for test bench, bench top and rack mount calibration, and automated test applications. Modularity increases user flexibility, reduces downtime and lowers overall cost of ownership.

Features:

- Market leading speed to set point, pressure stability in large volumes

- No overshoot of set point

- Up to 210 bar (3000 psi/21 MPa) gauge and absolute

- Precision to 0.001% FS over calibrated temperature range

- Long-term stability to 0.0025% FS per annum

- 28 selectable pressure units and 4 user defined units



Read some of our application stories:

Druck PACE 5000 facilitates pressure resistance testing in contact lens packages

Druck's PACE 5000 automates production testing in manufacturing medical devices



Please read more information regarding this product below on the datasheet. Also check out one of our success stories!

PACE5000
PACE 6000 modular pressure controller

A high precision Druck pressure controller, designed for test bench, bench top and rack mount calibration, and automated test applications. Modularity increases user flexibility, reduces downtime and lowers overall cost of ownership.

Additional Features:

- Dual channel pressure controller chassis

- Aeronautical option enabling full control in aeronautical units

- With two PACE CM3 control modules fitted in the PACE6000 can be used in single, auto-ranging or simultaneous dual pressure control mode*

- No module pressure range ratio limit

PACE Group range


Global Technical Service & Support



Contact Druck's support team for calibration support, technical support, end of service support details, or when upgrading your legacy Druck equipment to ensure your operations stay up and running.

Email: mstechsupport@bakerhughes.com

CONTACT US



Keep your Druck instrument up-to-date!

New customer portal makes your life easier

Make sure your pressure calibrator is up-to-date with the latest features! Here you can check the latest versions of the supporting files (firmware, documents and software)

Login



Druck Product Obsolescence Notice

UPS-III — This product has been discontinued. Druck recommends the DPI802 as an alternative pressure range / pressure measurement product option. Please contact a Druck specialist for immediate assistance. UPS-III-IS — This product has been discontinued. Druck recommends the DPI620G-L-IS as an alternative pressure range / pressure measurement product option. Please contact a Druck specialist for immediate assistance.



Need to upgrade your legacy Druck equipment?



Replacement Options for Legacy Druck Pressure Controllers



Legacy Model Number
End of Service & Repair Support
Calibration Support
Recommended Replacement
DPI510
2013
Calibration currently supported
PACE 6000
DPI515
2015
Calibration currently supported
PACE 5000 or PACE6000 (515D)
DPI520
2013
Calibration currently supported
PACE 5000
DPI530
2014
Calibration currently supported
PACE 5000



Replacement Options for Legacy Druck Pressure Indicators



Legacy Model Number
End of Service & Repair Support
Calibration Support
Recommended Replacement
DPI140 | DPI141
2013
Calibration currently supported
PACE 1000
DPI142
2014
Calibration currently supported
PACE 1000
DPI145
2014
Calibration currently supported
PACE 1000
DPI150
2014
Calibration currently supported
PACE 1000
DPI260
2013
Calibration currently supported
Contact your local sales representative
DPI280 Series
2013
Calibration currently supported
Contact your local sales representative
